FORCE BALL VALVES
▶ API B6A Side Entry Ball Valves
- Through conduit full round opening. The bore conforms to API 6A requirements for flowline valves
- Trunnion mounted ball
- Blow out proof stem
- Spring energized, soft inserted floating seat rings
- Bubble-tight seal at any pressure achieved by metal to metal primary seat backed up by the secondary soft insert
- Triple barrier stem seals
- Antistatic device
- Flanged end to API 6A Sect. XA

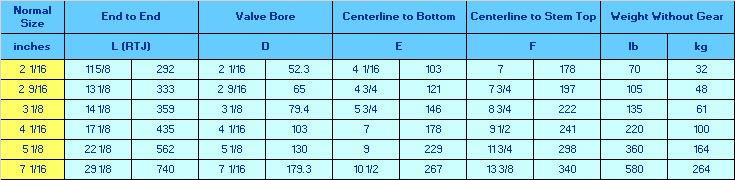

API 2000
Rated Working Pressue 2000 psi (138 bar) CWP
Hydrostatic Shell Test 4000 psi (276 bar)

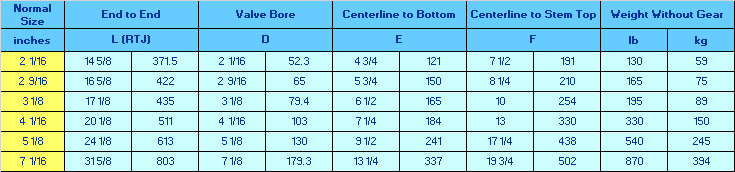

API 3000
Rated Working Pressue 3000 psi (207 bar) CWP
Hydrostatic Shell Test 6000 psi (414 bar)

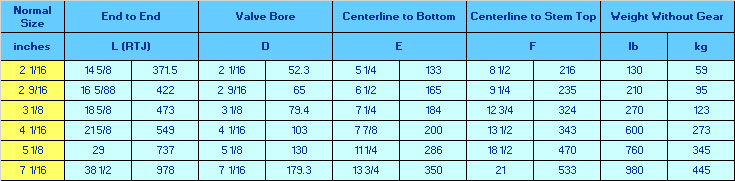

API 5000
Rated Working Pressue 5000 psi (345 bar) CWP
Hydrostatic Shell Test 10000 psi (690 bar)
