Description

KOMOTO® ball valves have been developed for wide range of process industry applications.
KOMOTO® ball valves comply with API standard that incorporate many special features. This series of valves is designed for both pressure and vacuum service.

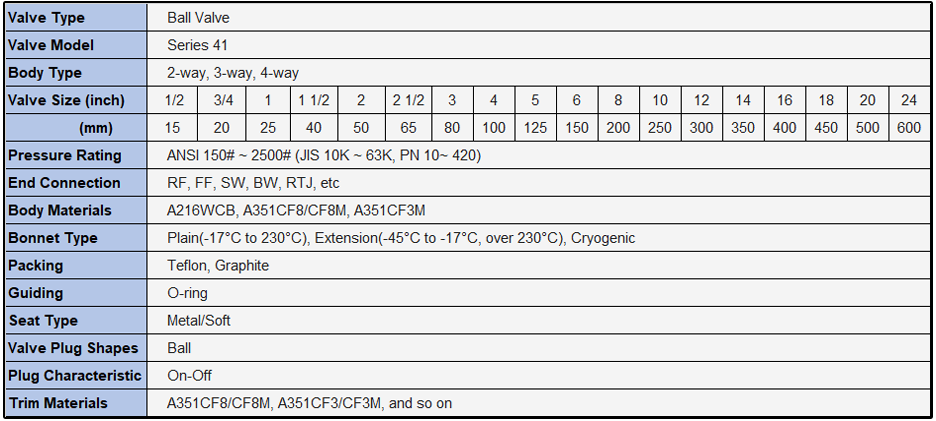

Standard Specifications

• Flanged end, 2-pcs split body construction, top entry available.
• Fields serviceable, wrench/gear/actuator mounted.
• Test Pressure: As per API 6D Std.
• Face to Face Dimension: as per API 6D Std.

End Connections

• Flanged, conforming to ANSI B 16.5. The ball valves comply with one or more of the following standard specifications as to pressure, temperature ratings and dimensions: ANSI, API, BS, DIN, MSS.
