FORCE BALL VALVES
Cryogenic Ball Valve

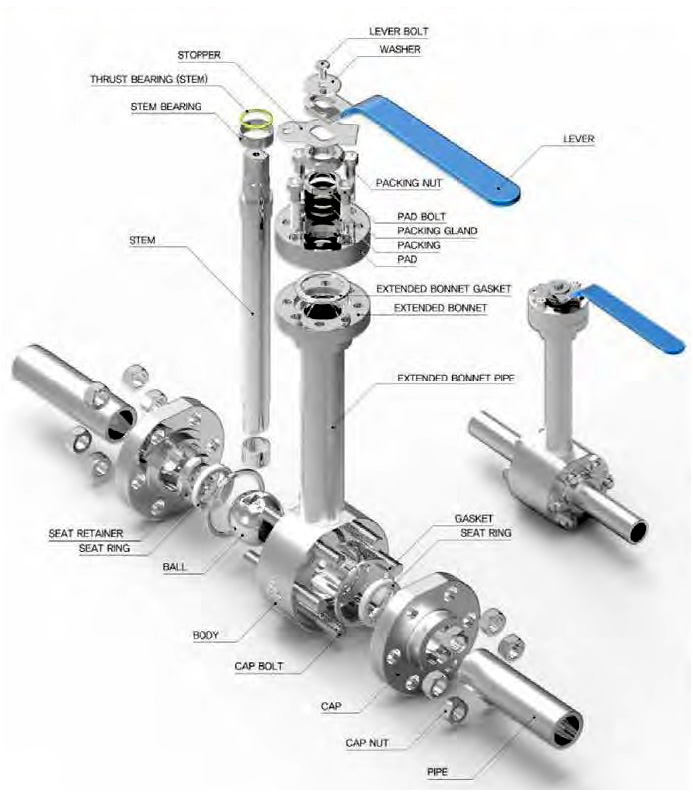

▶ Cryogenic Service Ball Valves
Floating Type, Side Entry
Specification
Constructin :
Split body (3-piece), Side entry, bolted, full / reduced port, Free floating ball, “Fire-safe” designed to API 607/ISO 10497 Anti-blow out proof stem, cavity relieving seated. Designed to API 6D, BS 6364, ASME B16.34, API 608 and
ISO 17292/ BS 5351 specification.
Note :
Manufactured and conforms to NACE standard MR 0175

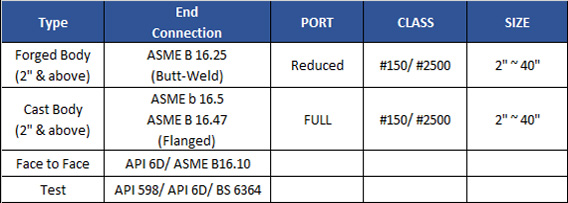

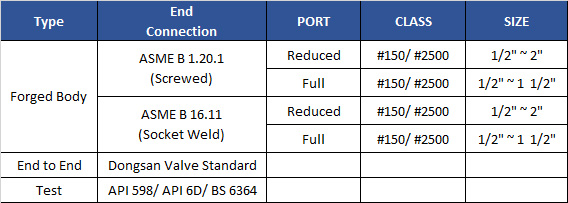

Dimensions :

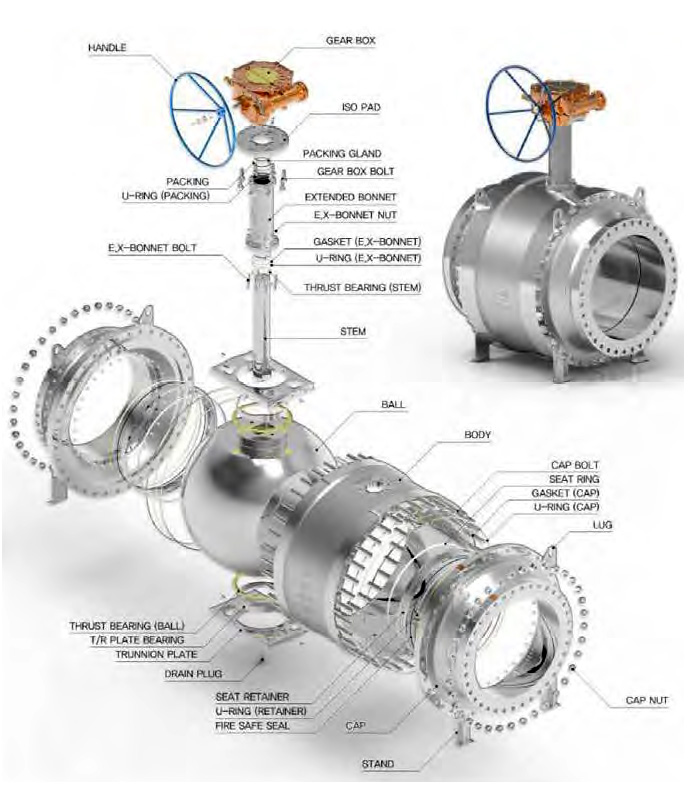

▶ Cryogenic Service Ball Valves
Trunnion Type, Top Entry
Specification
Constructin :
Uni body (1-piece), Top Entry, bolted, full / reduced port, Trunnion mounted ball, Double seal design, Double block & bleed, “Fire-safe” designed to API 607/ISO 10497, Anti-blow out proof stem, cavity relieving seated. Designed to API 6D, BS 6364, ASME B16.34 and ISO 17292/BS 5351 specification.
Note :
Manufactured and conforms to NACE standard MR 0175
Dimensions :
▶ Cryogenic Service Ball Valves
Trunnion Type, Side Entry
Specification
Constructin :
Split body (2/3-piece), Side entry, bolted, full / reduced port, Trunnion mounted ball, Double seal design, Double block & bleed, “Fire-safe” designed to API 607/ ISO 10497, Anti-blow out proof stem, cavity relieving seated. Designed to API 6D, BS 6364, ASME B16.34, and ISO 17292 /BS 5351 specification.
Note :
Manufactured and conforms to NACE standard MR 0175
Dimensions :
