GLOBE VALVE

Globe Valve (BS1873)

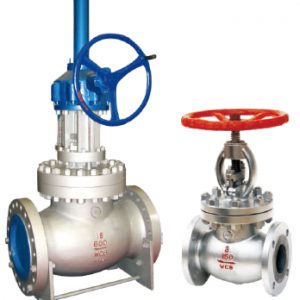

SUNGO cast steel globe valves are designed and manufactured to provide maximum service life and dependability. Valves meet the design requirements of AP1-600 and ANSI B 16.34. Valves are available in a complete range of body/bonnet materials and trims.

Design Feature :

  • Meet design requirements of ANSI B16.5, B16.34, B16.10, B16.25, API-600 or BS1873
  • Inspection and Test: accord with API 598
  • Full range of body/bonnet & trim materials
  • Back seating/OS&Y construction design
  • Renewable seat rings-seal welded
  • Choice of plug or ball disc
  • Flanged or butt weld ends
  • Optional impact hand wheel

Products Range

Size : NPS 2″ -32″ (DN50-DN800)
Rating : Classl50-2500
Materials : WCB,LCB,CF8,CF8M,CF3,CF3M,
                    WC6,WC9,C5,C12 or Equivalent.
Actuation : Handwheel .Gear, Motor,Pneumatic

Details refer to SUNGO catalogue No.SUNGO-E-GGCV
