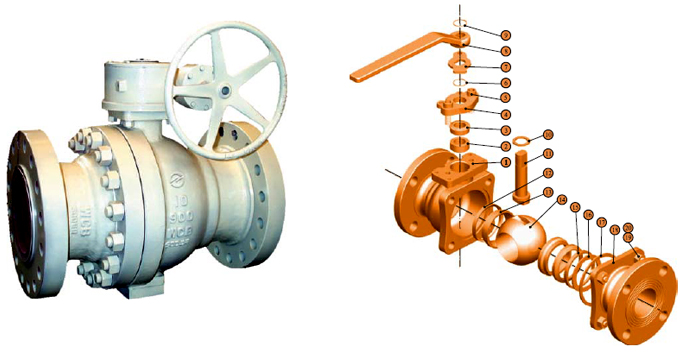

Metal To Metal Sealed Floating Ball Valve

BALL VALVE

Metal To Metal Sealed Floating Ball Valve

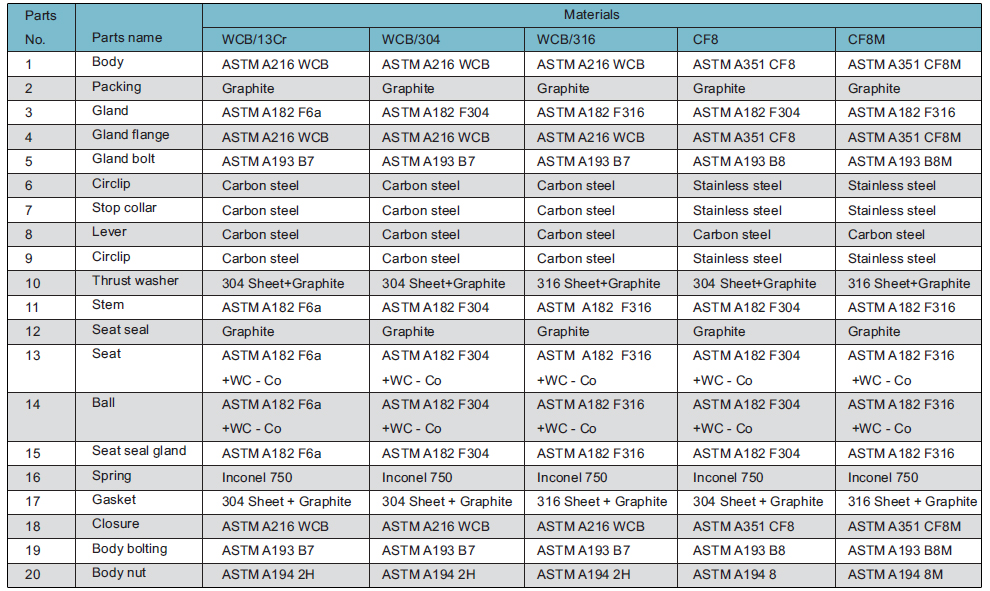

Parts And Material list

Note: The chart above only lists out some common composition of steel ball valve parts. We may provide other different parts material composition according to the customer’s request or the actual valve working condition.

Main Sizes And Weights

Refer to that of floating ball valve for main dimensions and weights of metal to metal sealed floating ball valve. The flange dimensions and face to face dimensions are the same as that of floating ball valve.

Products Range

Products range of metal to metal sealed floating ball valve as follows.

Note:For the manual ball valve, indicates that Lever is suggested, indicates that worm gear is suggested.

Forged steel Metal To Metal Sealed Floating Ball Valve

SUNGO’s metal to metal sealed floating ball valve is in general employing casted steel valve body. If required by customers, forged steel valve body is also available, of which the flange dimensions and face to face dimensions are the same as that of cast steel ball valve.
