One Piece Body Ball Valve

BALL VALVE

One Piece Body Ball Valve

Application

One piece body ball valve is suitable for use on various kinds of pipelines of Class150 to Class300, PN16 to PN40, JIS 10K to JIS 20K to turn off or on the pipeline medium, of which operation manners are of manual, worm gear, pneumatic or electric actuators, being of flange connection with reduced bore.

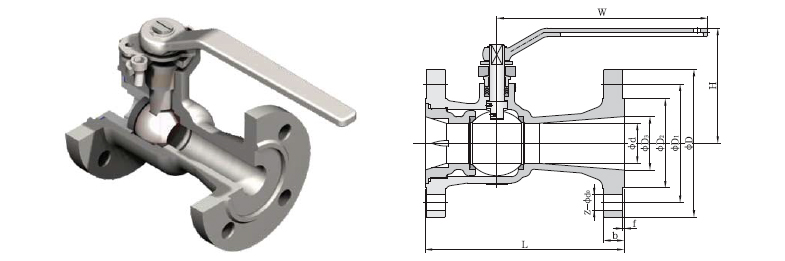

Typical Drawing Of One Piece Body Ball Valve And Parts Composition

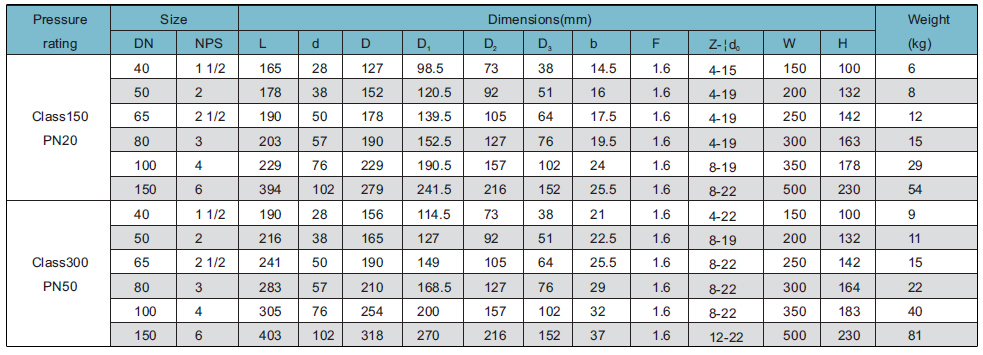

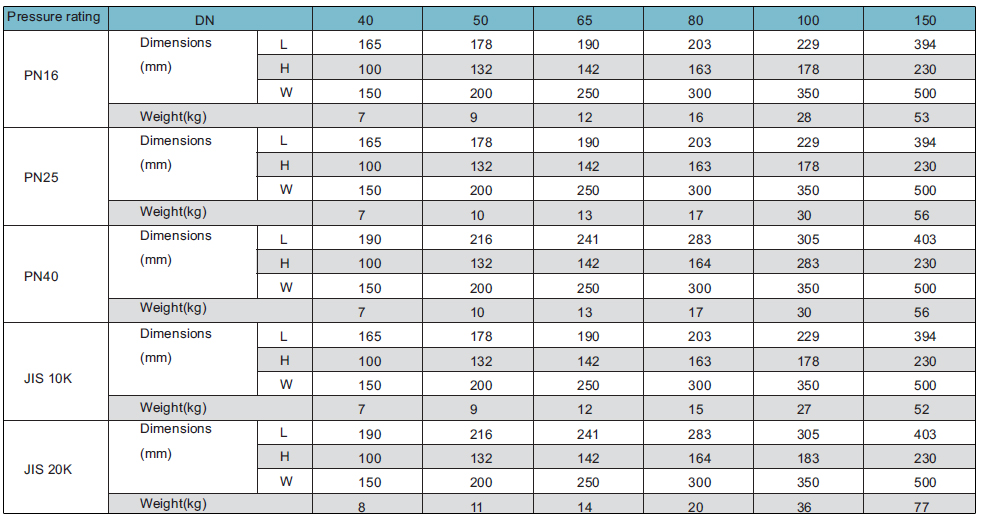

Main Size And Weight
