Parallel Slide Gate Valve

Posted by
0 comments

GATE VALVE

Parallel Slide Gate Valve Class 600~1500

Standards

  • OS&Y, Rising Stem, Expanded
  • Parallel Slide Gate Valve,
  • Double Disc, Pressure Seal or Bolted Bonnet,
  • Welded-in or Threaded Seat Ring
  • Size Range : 2″ -24″

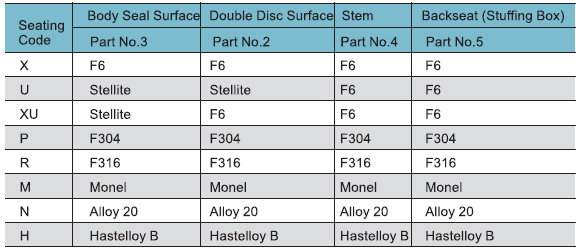

Trim Material to API 600

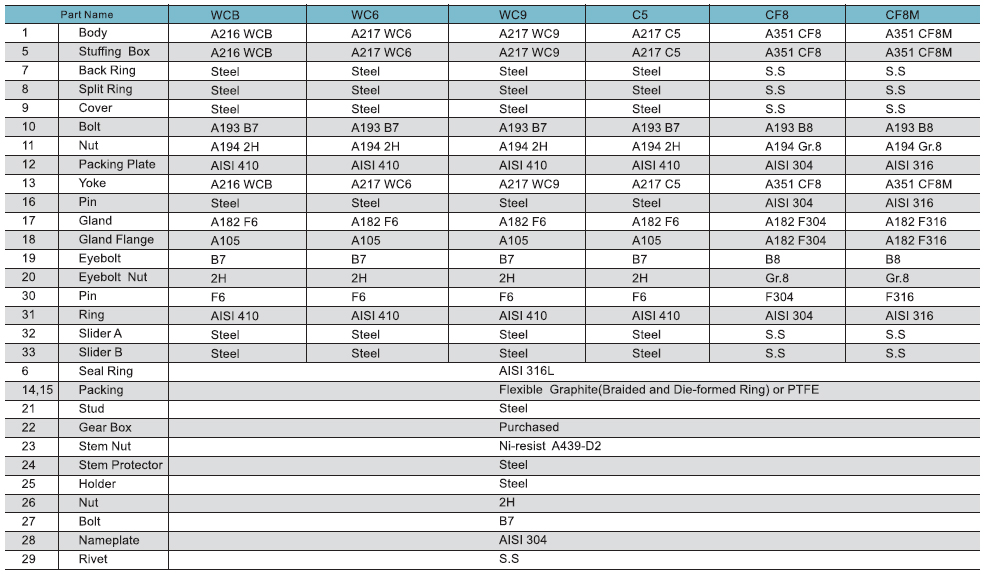

Standard Material Specifications

Standards Compliance

  • Basic Design: API 600. ANSIB16.34
  • Face to face dimension: ANSI B16.10
  • End to end dimensions: ANSI B16.10
  • Flanges end: ANSI B16.5
  • B.w. Ends: ANSI B16.25

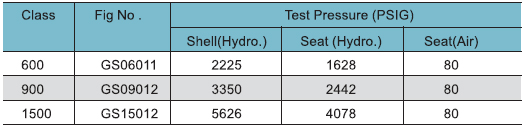

Trim Pressure to API 598

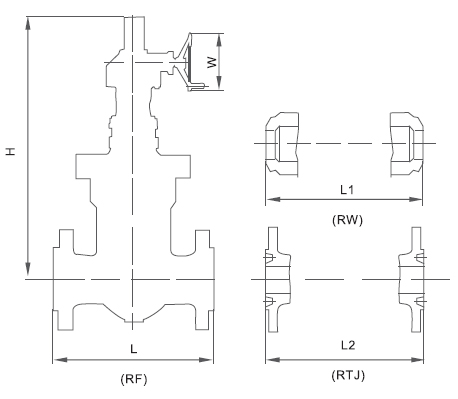

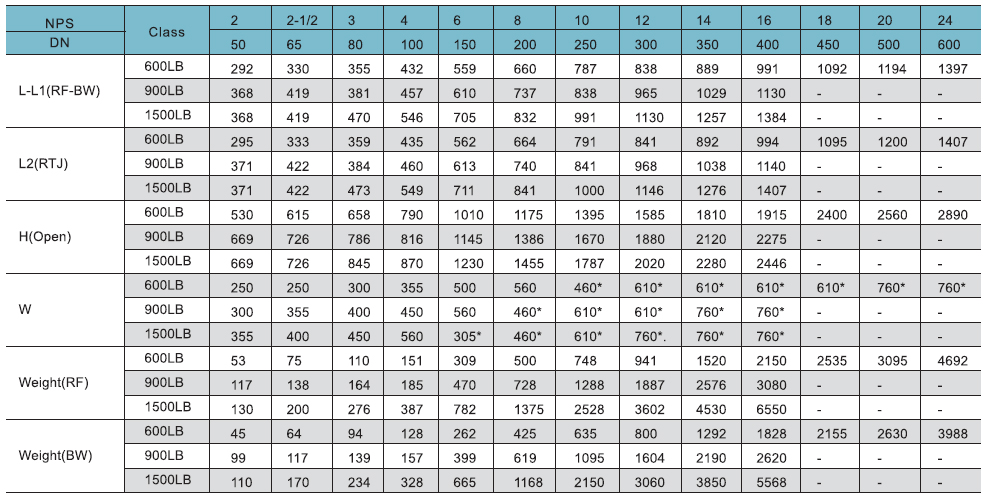

Dimensions(mm) and Weights(kg)

Manual gear operator is recommended.
