Pressure Seal Gate Valve

Posted by author-avatar
On 6 February 2024
0 comments

GATE VALVE

Pressure Seal Gate Valve

Standards

  • Size Range : 2″ -16″
  • OS&Y, Rising stem, Flexible Solid Wedge,
  • Welded-in or Threaded Seat Ring

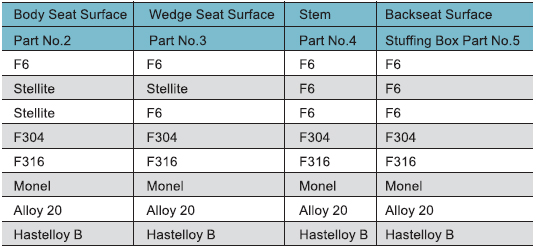

Trim Material toAPI600

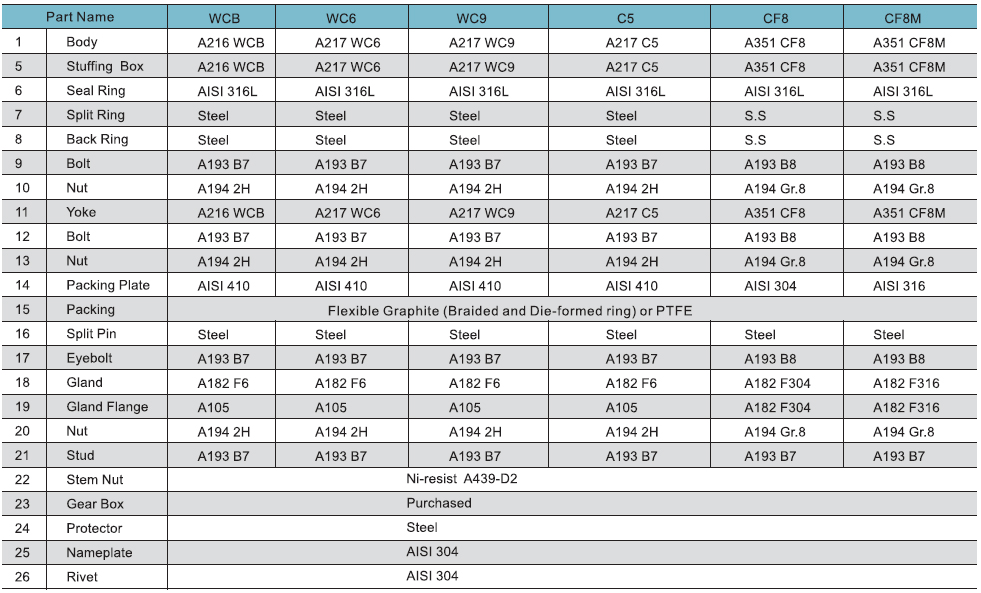

Standard Material Specifications

other materials on request

Standards Compliance

  • Basic Design : ANSI B16.34
  • Face to face dimensions : ANSI B16.10
  • End to end dimensions : ANSI B16.10
  • End flanges : ANSI B16.5
  • B.W. ends : ANSI B16.25

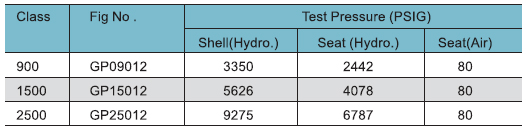

Test Pressure To API 598

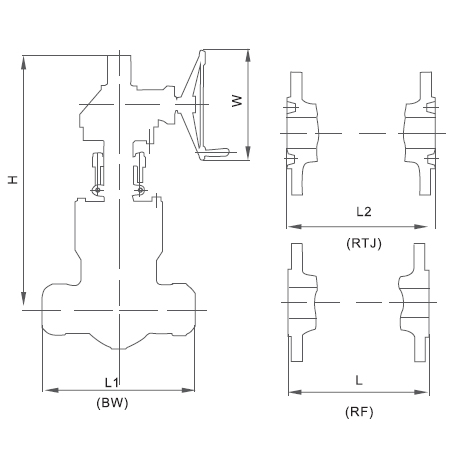

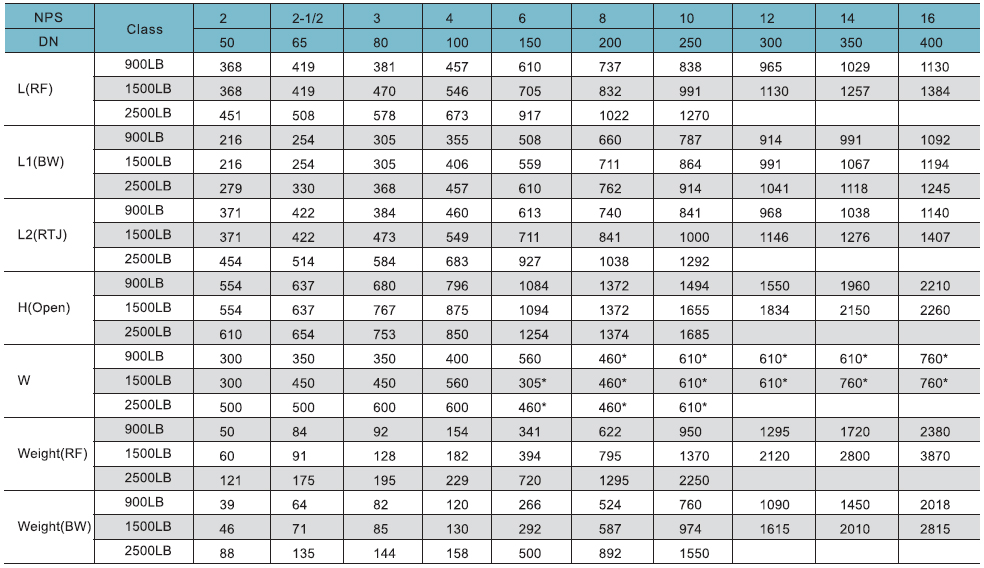

Dimensions(mm) and Weights(kg)

Manual gear operator is recommended.
