Pressure Seal Globe Valve

Posted by
0 comments

GLOBE VALVE

Pressure Seal Globe Valve

Standards

  • OS&Y, Rising stem, Plug Type Disc,
  • Threaded Seat Ring
  • size Range: 2″-8″

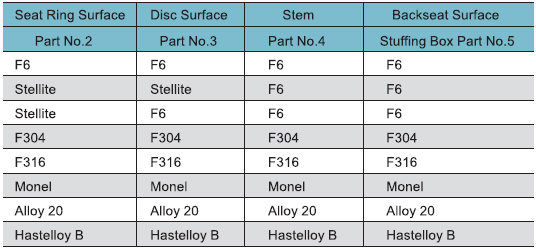

Trim Material toAPI600

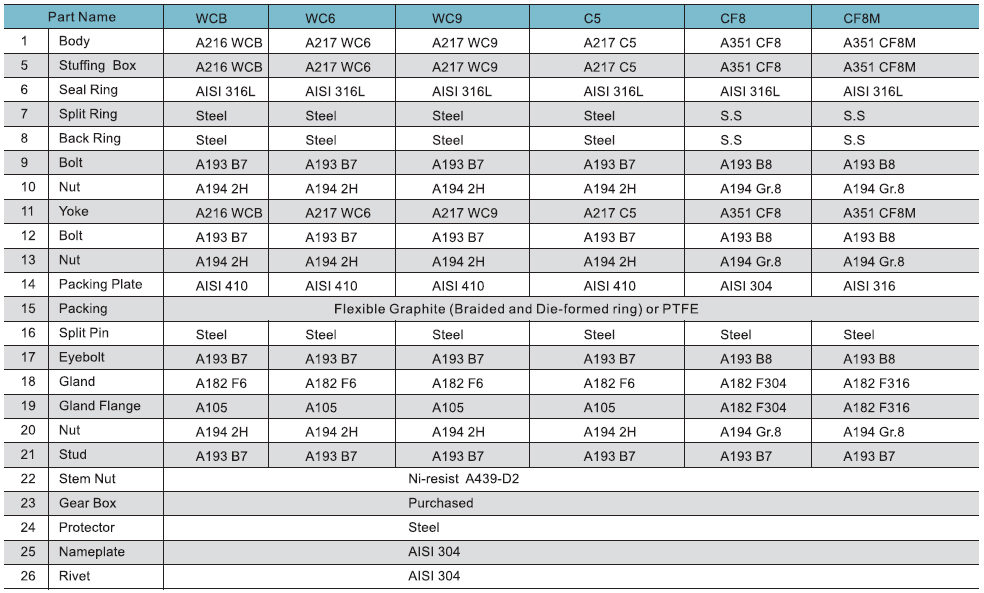

Standard material specifications

Other materials on request

Standards Compliance

  • Basic Design: ANSI B16.34
  • Face to face dimensions: ANSI B16.10
  • End to end dimensions: ANSI B16.10
  • End flanges: ANSI B16.5
  • B.w. Ends: ANSI B16.25

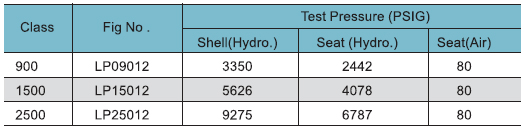

Test Pressure to API 598

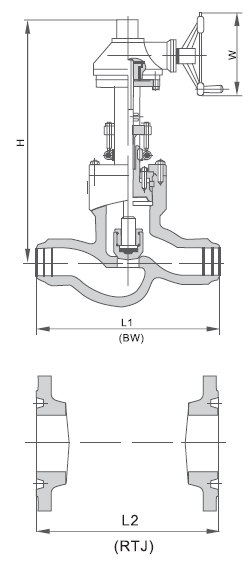

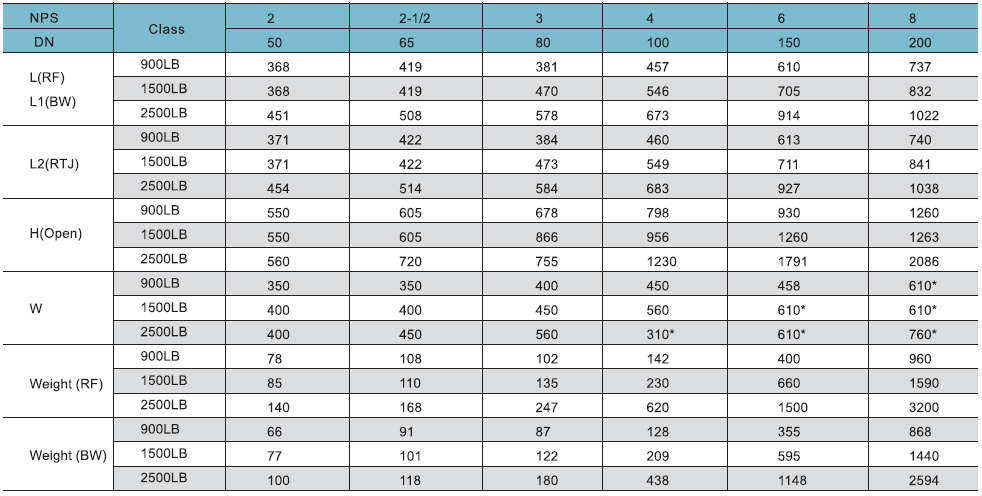

Dimensions(mm) and Weights(kg)

Manual gear operator is recommended.
