Pressure Seal Swing Check Valve

Posted by
0 comments

CHECK VALVE

Pressure Seal Swing Check Valve

Standards

  • Pressure Seal Cover,
  • welded-in or Threaded Seat Ring
  • size Range:2″-16″

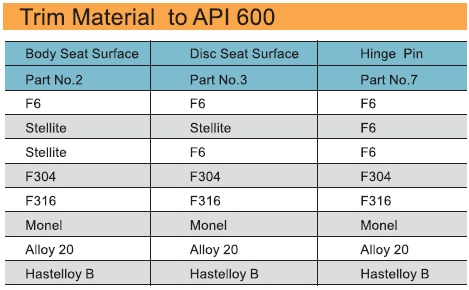

Trim Material to API 600

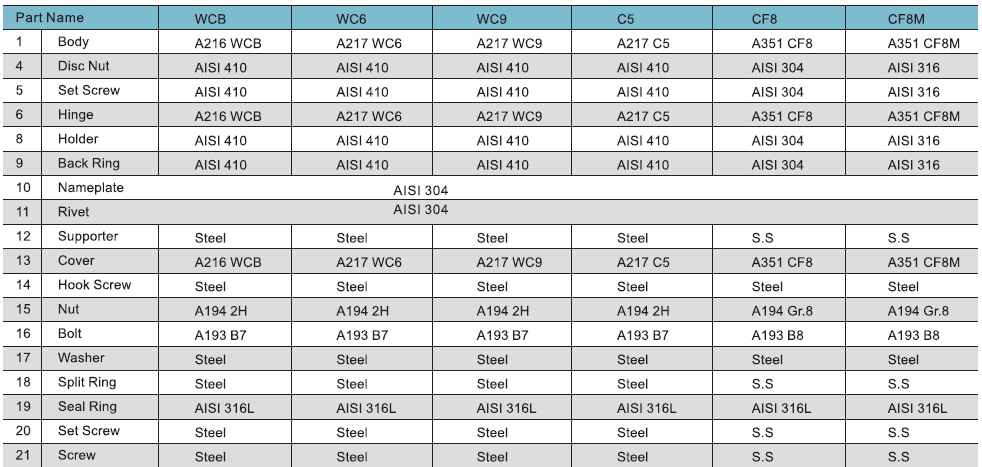

Standard Material Specifications

other materials on request

Standards Compliance

  • Basic Design: ANSI B16.34

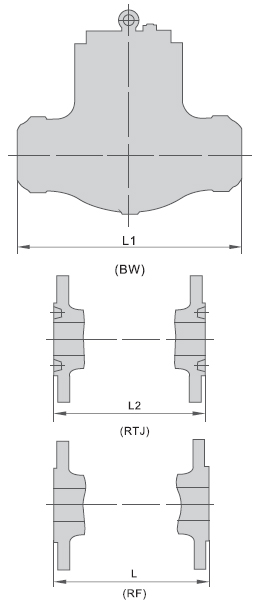

  • Face to face dimension: ANSI B16.10
  • End to end dimension: ANSI B16.10
  • End flanges: ANSI B16.5
  • B.w. Ends: ANSI B16.25

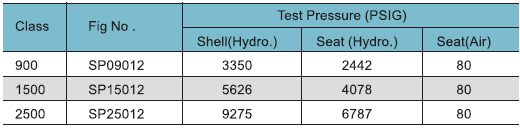

Test Pressure to API 598

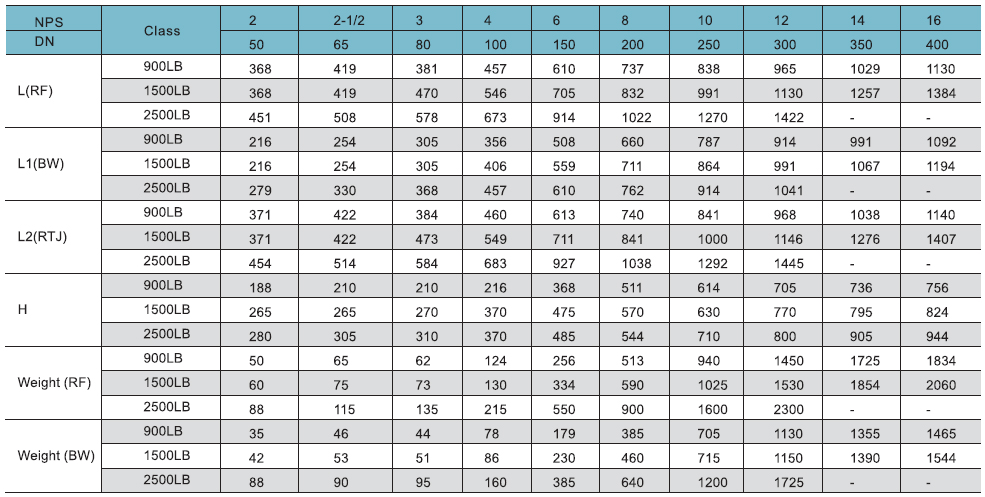

Dimensions(mm) and Weights(kg)
