Description

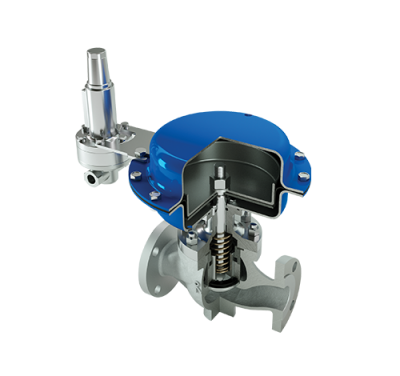

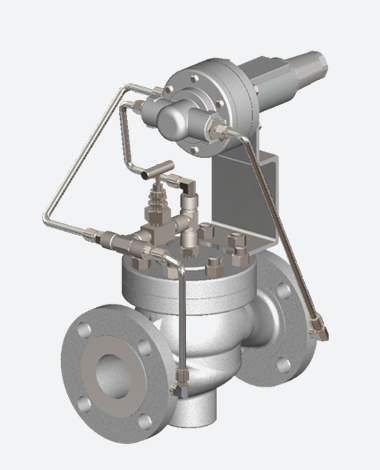

The KOMOTO PR-1807R back pressure regulators precisely control upstream pressure to a predetermined set-pressure. Thanks to the innovative design, they provide quick response to sudden pressure changes.
The PR-1807R series regulators offer maximum capacity, quick response, and accurate pressure control. Amplifying effect of the pilot provides superior pressure control performance.

Features

• Top-entry design for ease of maintenance
• Full port design for high capacity
• Stable guiding piston design
• Tight shut-off with soft seat at all pressure differentials
• Excellent pressure control rangeability

Control range: 0.005 to 45 BarG
Temperature Range : -25 ~ 200 ˚c
Size : 1/2” ~ 2”
