Trunnion Mounted Ball Valves

Trunnion Mounted Ball Valves
Pnbadminthai DONGSAN VALVE CO., LTD

FORCE BALL VALVES

▶ Trunnion Mounted Ball Valves

  • Full bore – 4″ to 52″ & Reduced bore – 6″ to 52″ ANSI 150
  • Full bore – 4″ to 52″ & Reduced bore – 6″ to 52″ ANSI 300
  • Full bore – 2″ to 24″ & Reduced bore – 2″ to 24″ ANSI 600
  • Full bore – 2″ to 24″ & Reduced bore – 2″ to 24″ ANSI 900/1500
  • Full bore & Reduced bore ANSI 2500

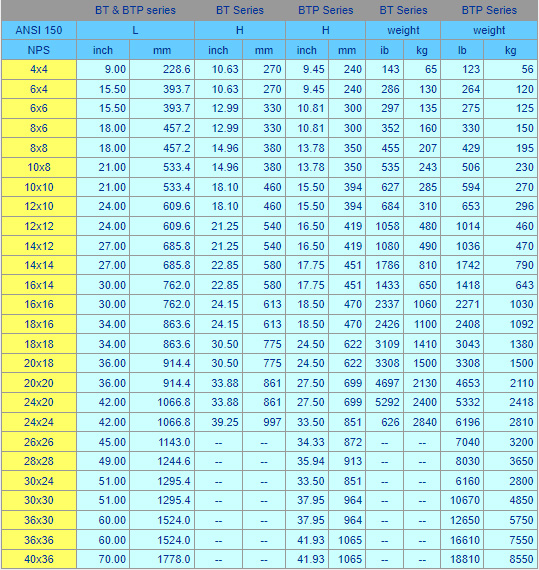

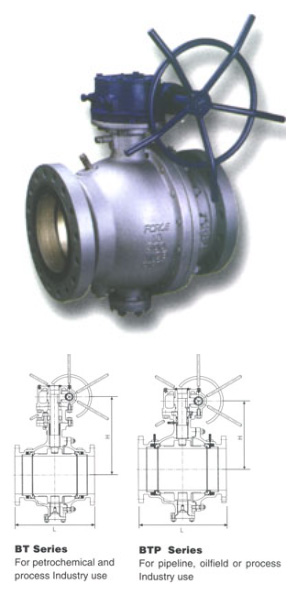

BT & BTP Series ANSI 150

  • Full bore: sizes 4″ to 52″
  • Reduced bore: sizes 6″ to 52″

Specifications

  • Applicable Standards: ANSI B16. 34, BS5351, API6D and / or JIS
  • Face to face: ANSI B16. 10
  • End Flange Dimensions: ANSI B16. 5
  • Seats: PTFE, RTFE, Modified TF

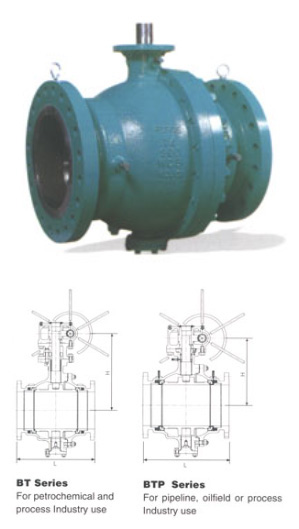

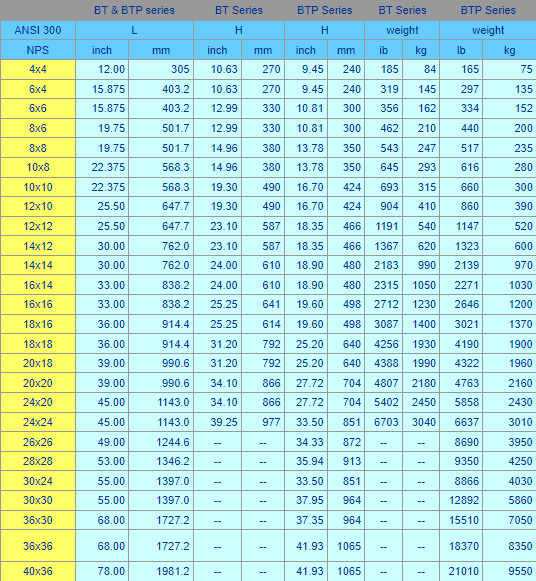

BT & BTP Series ANSI 300

  • Full bore: size 1/2″ to 6″
  • Reduced bore: Sizes 3″ to 6″
  • For oilfield or process industry

Specifications

  • Applicable Standards: ANSI B16. 34, BS5351, API 6D
  • Face to face: ANSI B16. 10
  • End Flange Dimensions: ANSI B16. 5

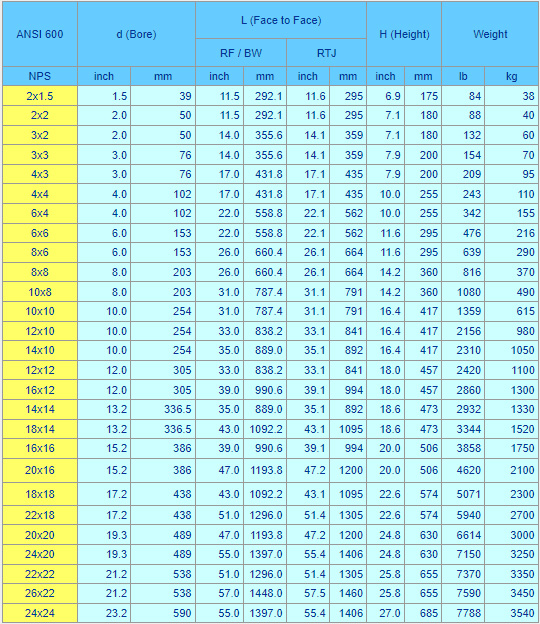

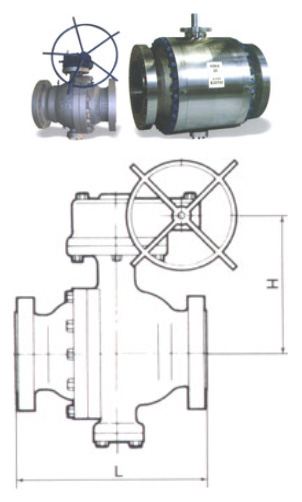

BT & BTP Series ANSI 600

  • Full bore: sizes 2″ to 24″
  • Reduced bore: sizes 2″ to 24″

Specifications

  • Applicable Standards: ANSI B16. 34, BS5351, API 6D and / or JIS
  • Face to face: ANSI B16. 10
  • End Flange Dimensions: ANSI B16. 5

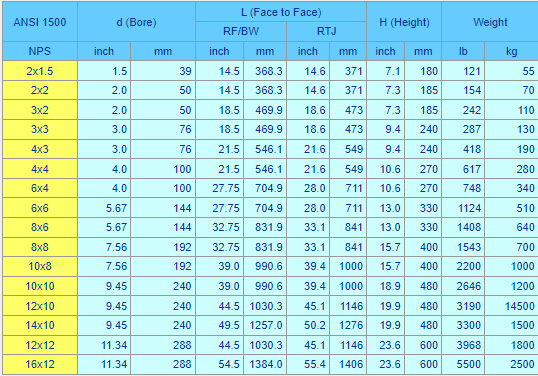

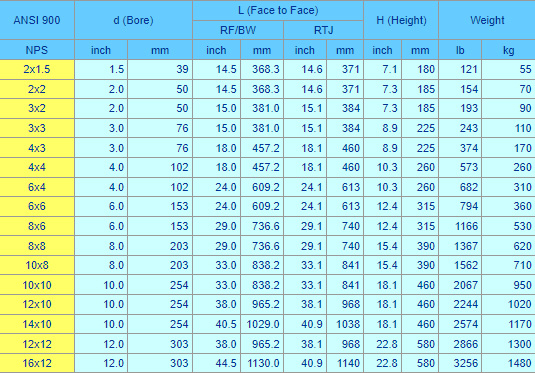

BT & BTP Series ANSI 900/1500

  • Full bore: sizes 2″ to 24″
  • Reduced bore: sizes 2″ to 24″
  • 2 or 3 pieces

Specifications

  • Applicable Standards: ANSI B16. 34, API 6D and / or JIS
  • Face to face: ANSI B16. 10
  • End Flange Dimensions: ANSI B16. 5

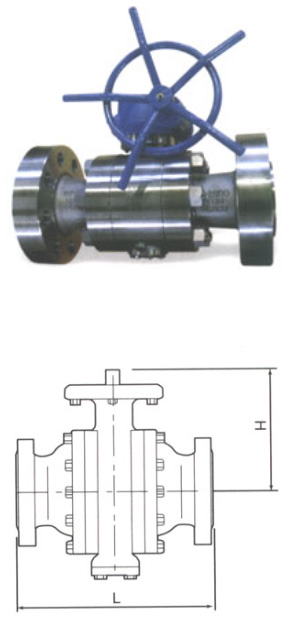

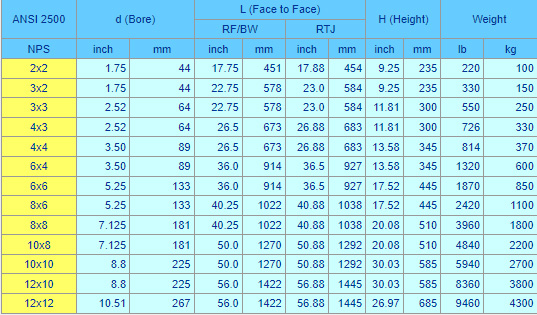

BT & BTP Series ANSI 2500

  • Full Bore & Reduced Bore

Specifications

  • Applicable Standards: ANSI B16.34 & API 6D
  • Face to face: ANSI B16.10
  • End Flange Dimensions: ANSI B16.5

* Weight of Flanged end valve is for bare stem
